Rechargeable Hydraulic Pipe Crimper

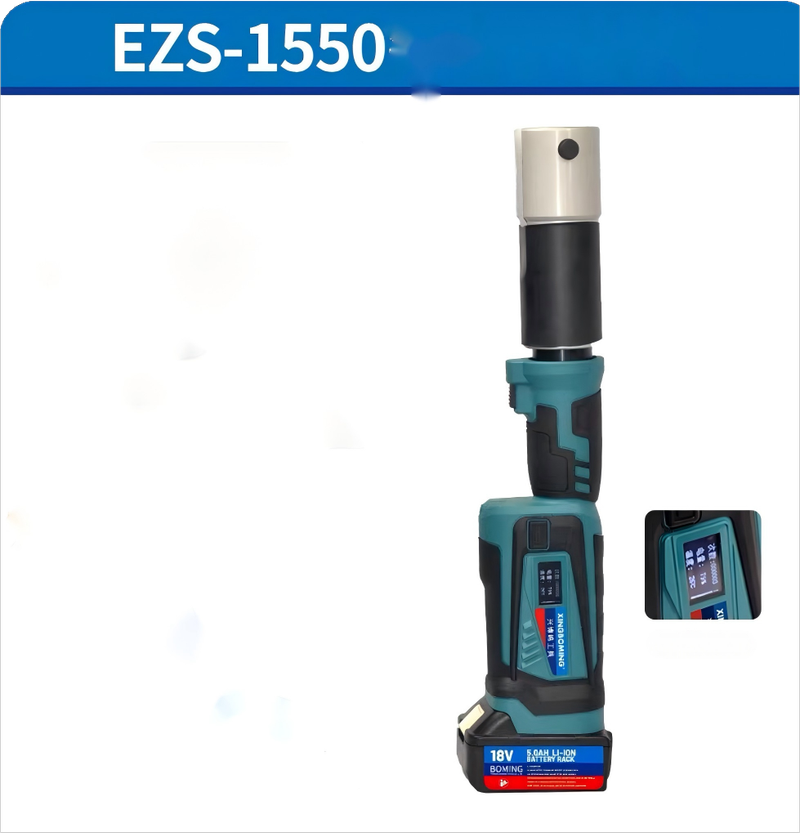

EZS - 1550 Lithium - ion Hydraulic Pipe Crimper

Model

EZS - 1550

- Voltage/Capacity: 18V/5.0Ah Lithium - ion Battery
- Crimping Time: Approximately 8 - 12s (depending on pipe diameter)
- Output Force: 32KN
- Packaging: Plastic box
- Die Configuration: V18

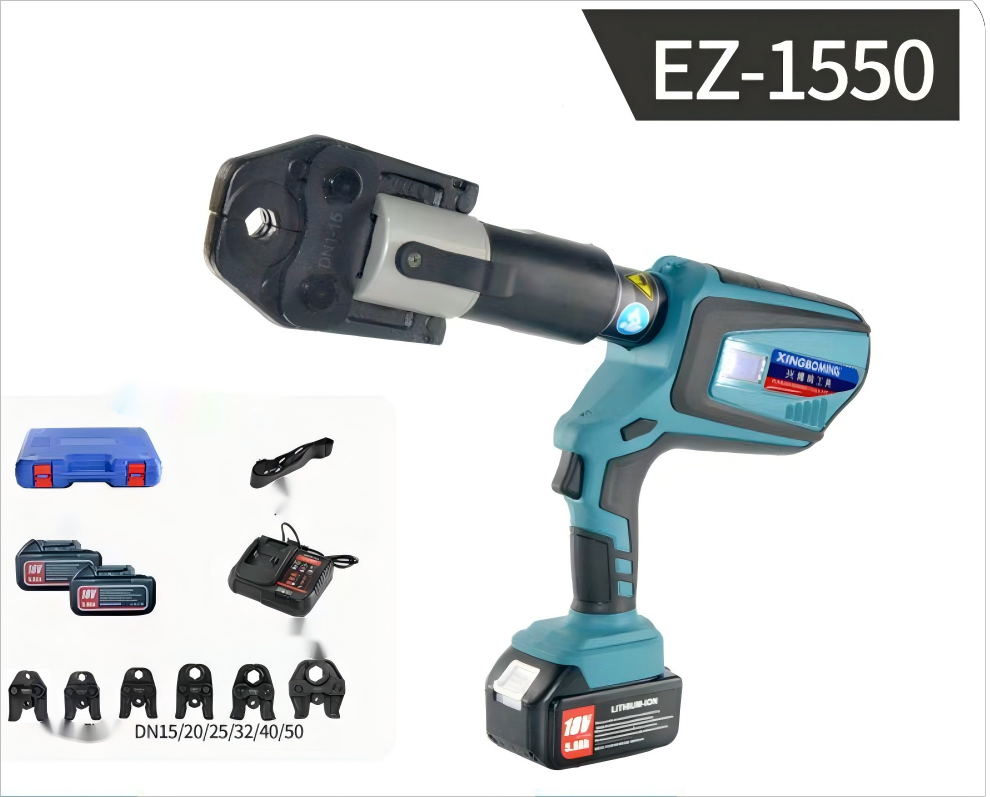

- Material: For crimping carbon steel pipes                                                                                                                      Electric Hydraulic Pipe Crimper EZ - 1550

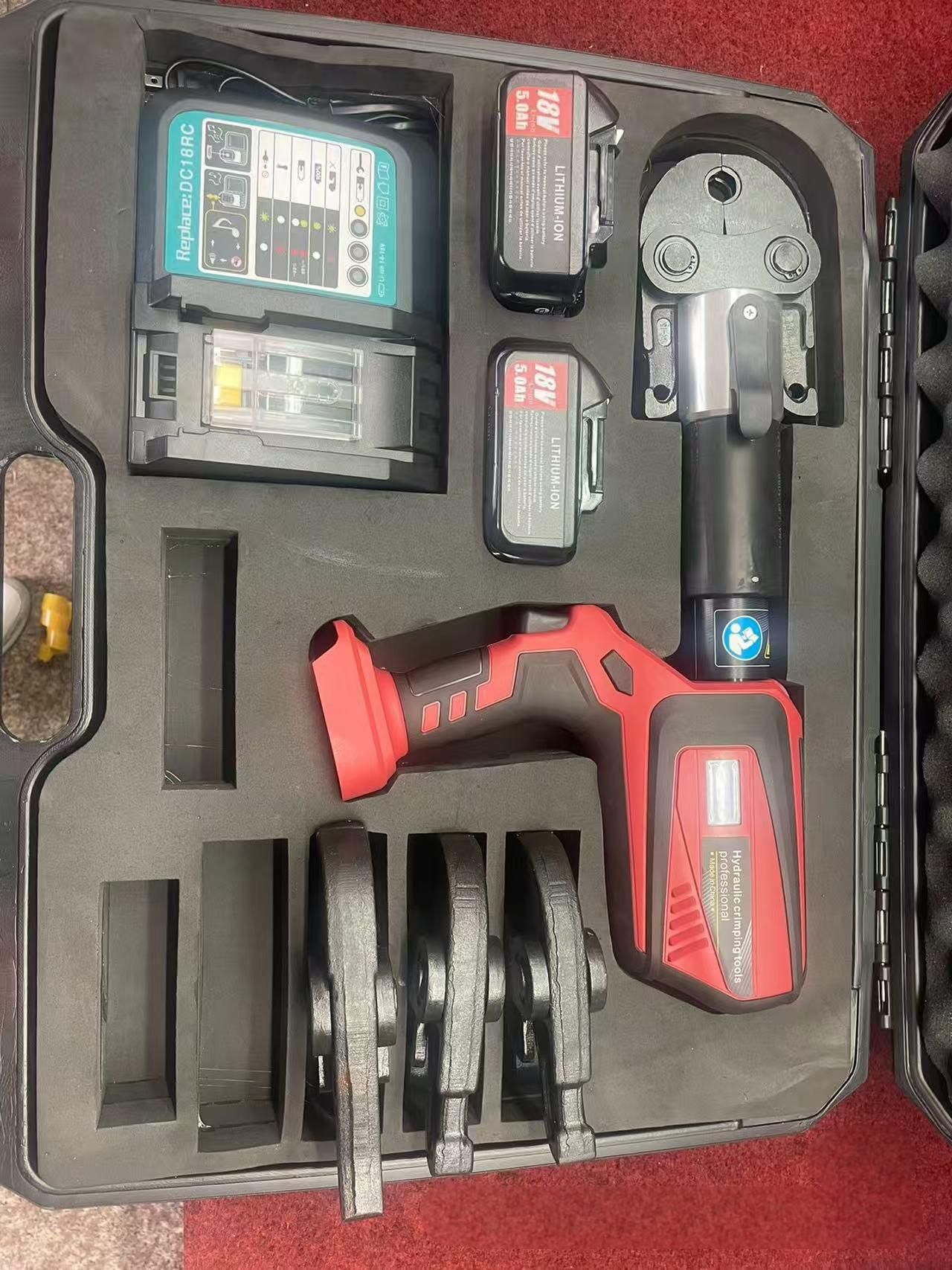

Product Accessories

- Portable Plastic Case
- Shoulder Strap
- 2 x 5.0Ah Lithium - ion Batteries
- 1 x Charger
- Die Configuration: DN15, 20, 25, 32, 40, 50

Technical Parameters

- Model: EZ - 1550
- Net Weight / Gross Weight: Approximately 3.8kg / 6.0kg
- Rated Pressure: 32KN
- Stroke: 40mm
- Battery: 18V/5.0Ah Lithium - ion Battery
- Crimping Time: 3 - 6 seconds (depending on pipe diameter)
- Crimping Range: 12 - 54mm (1/2" - 2") thin - wall stainless steel pipes; 12 - 108mm (1/2" - 4") plastic pipes / aluminum - plastic composite pipes / copper pipes

Screen Display

- Standby
- Battery: 24%
- Temperature: 30°C
- With OLED display screen

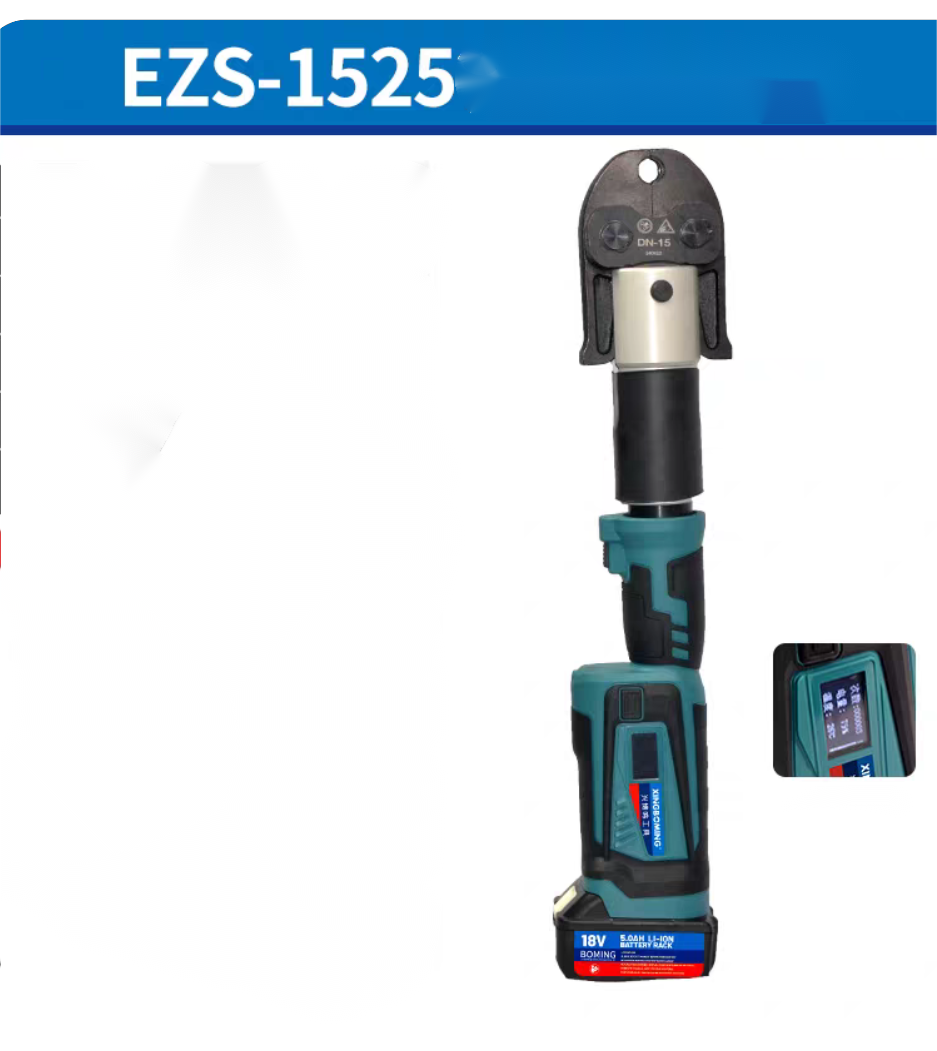

EZS - 1525 Lithium - ion Hydraulic Pipe Crimper

Model

EZS - 1525

- Voltage/Capacity: 18V/5.0Ah Lithium - ion Battery
- Crimping Time: 3 - 6 seconds (depending on pipe diameter)
- Output Force: 32KN
- Packaging: Plastic box
- Die Configuration: DN15

Product Accessories

- Packaging Box
- Hand - carry Strap
- Charger
- Lithium - ion Battery
- DN15 crimping die for stainless steel pipes (please note for Series I or II

Screen Display
EZS - 1525 Lithium - powered Pipe Crimper

Model: EZS - 1525 (Quick - return Lightweight Model)
Voltage/Capacity: 18V/5.0Ah Lithium Battery
Crimping Time: 2 - 3 seconds (depending on pipe fitting diameter)
Output Force: 32KN
Packaging: Plastic Case
Mold Configuration: DN15/DN20
Accessories:

- Packaging Case
- Hand Strap
- Charger
- Lithium Battery
Note: Suitable for crimping stainless - steel pipes DN15 - DN20, Type I or Type II. Please note.
Features:
- Battery Life Increased by 60%
- Weight Reduced by 35%
- Screen Display
Model: EZS - 1525 (Quick - Return Lightweight Version)
Voltage/Capacity: 18V/5.0Ah Lithium Battery
Crimping Time: 2 - 3 seconds (depending on the diameter of the pipe fitting)
Output Force: 32KN
Packaging: Plastic Box
Mold Configuration: DN15/20/25
Accessories: Packaging Box, Hand Strap, Charger, Lithium Battery
Note: Suitable for crimping stainless steel pipes DN15 - DN25, Type I or Type J. Please note.
