Manual hydraulic pump


Parameter Details

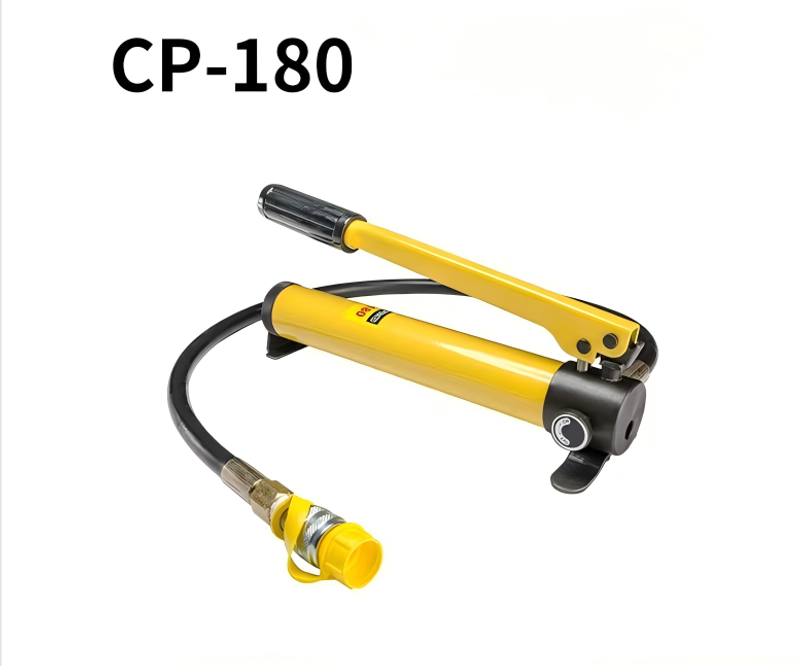

Model CP - 180
Oil Storage Capacity 400cc
High - Pressure Flow Rate 2cc
Low - Pressure Flow Rate Not provided
High - Pressure Value 600kg/cm²
Low - Pressure Value Not provided
Weight 3.8kg

Parameter Value

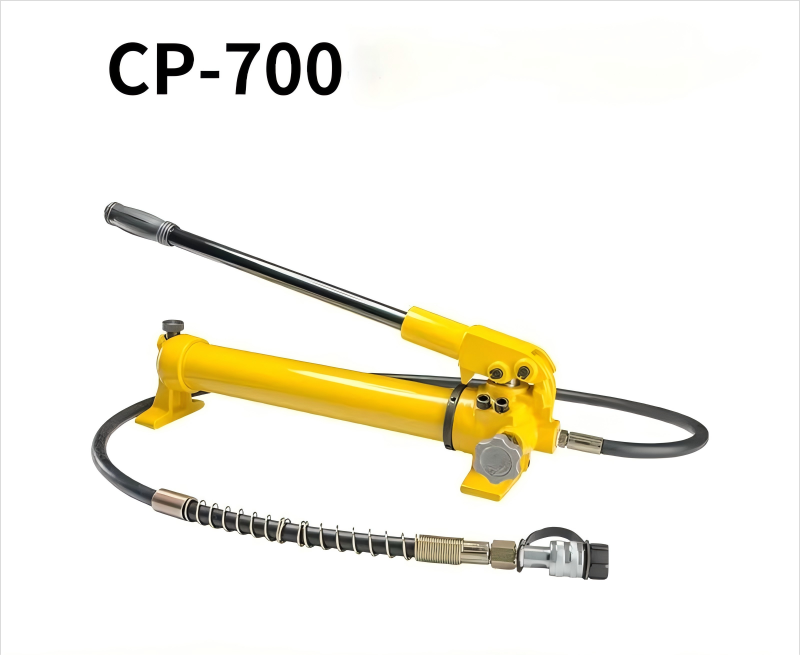

Model CP - 700
Oil Storage Capacity 900cc
High - Pressure Flow Rate 2.3cc
Low - Pressure Flow Rate 13cc
High - Pressure 700kg/cm²
Low - Pressure 20kg/cm²
Weight 9.5kg


Parameter Value

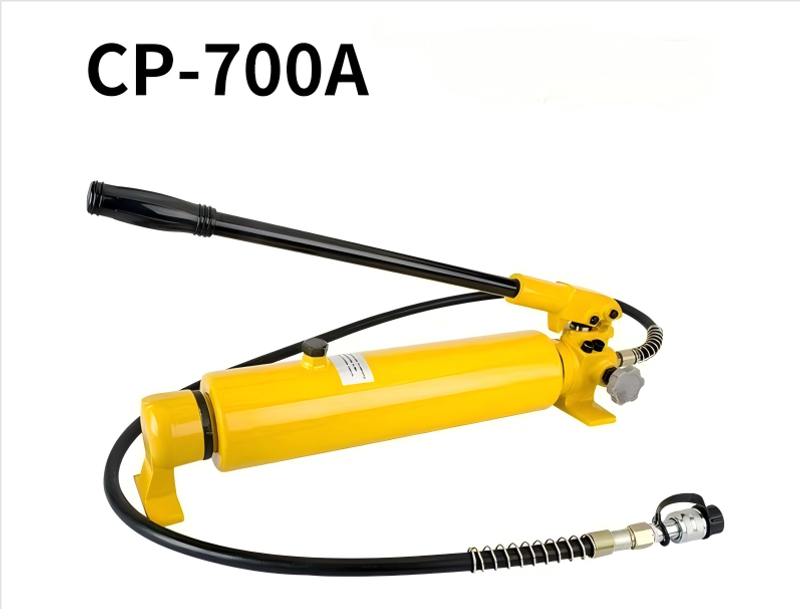

Model CP - 700A
Oil Storage Capacity 2800cc
High - Pressure Flow Rate 2.26cc
Low - Pressure Flow Rate 12.26cc
High - Pressure 700kg/cm²
Low - Pressure 20kg/cm²
Weight 15.6kg


Parameter Value

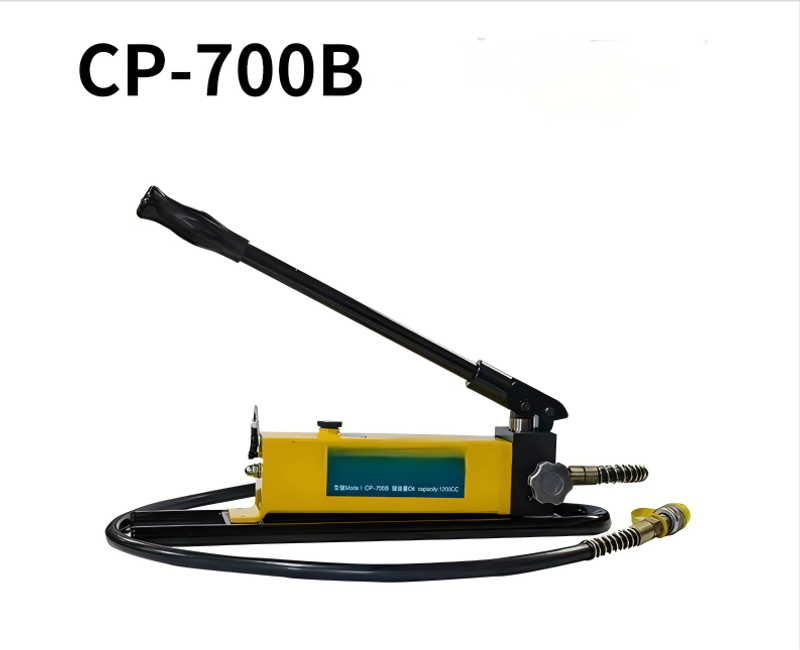

Model CP - 700B
Maximum Output Pressure 700kg/cm²
High Pressure 2.3 Mpa
Low Pressure 13 Mpa
Oil Storage Capacity 900cc
Weight 10kg


Parameter Value

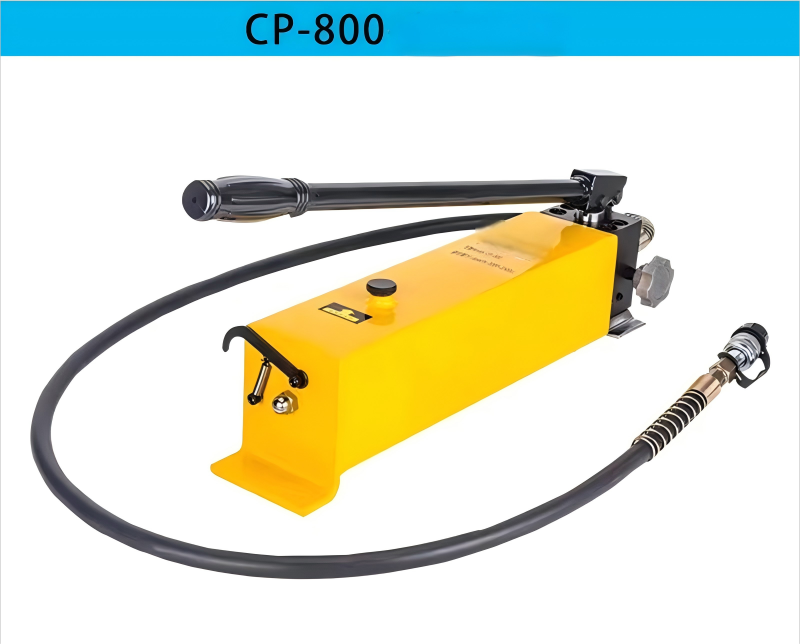

Model CP - 800
Standard Oil Pipe Length 1.8 meters
High - Pressure 700 Mpa
Low - Pressure 20 Mpa
High - Pressure Oil Volume 2.3cc
Low - Pressure Oil Volume 13cc
Oil Storage Capacity 3000cc (Hydraulic Oil of Viscosity Grade 15 - 32)
Weight 14kg


Parameter Value
Model CP - 700B Foot - operated Pump
Low - Pressure 20 Mpa
High - Pressure 700 Mpa
Low - Pressure Oil Volume 13cc
High - Pressure Oil Volume 2.3cc
Net Weight / Gross Weight 10kg / 11.7kg
Oil Storage Capacity 1200cc
