Hydraulic perforator
0
sales
Regular Price
$124.79
Regular Price
Sale Price
$62.39
CH-60

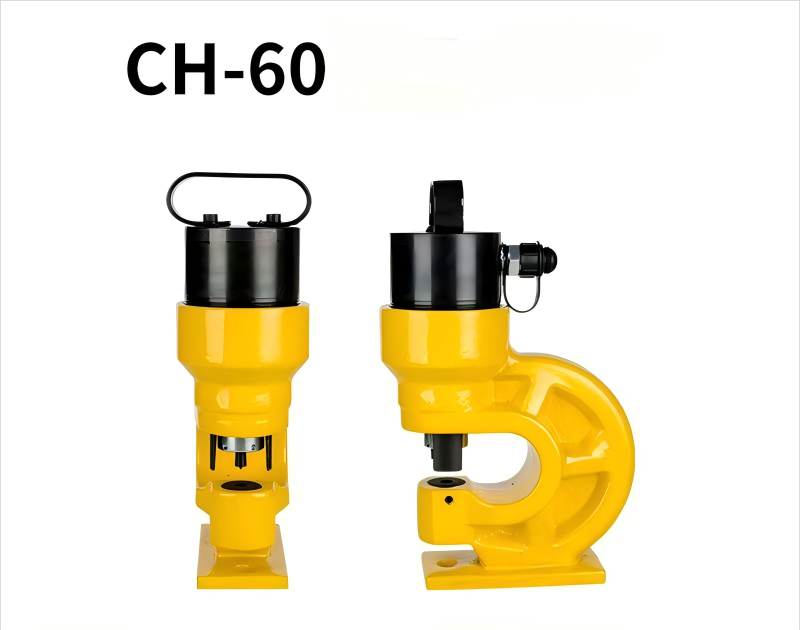

CH - 60 Ordinary Punching Machine
- Applicable Dies: Φ10.5, Φ13.8, Φ17.5, Φ20.5. For other sizes, please contact customer service for replacement.
- Model: CH - 60
- Weight: 20kg
- Throat Depth: 95mm
- Output Force: 31T
- Applicable Channel Steel: 6 - 10# (wide face)
- Applicable Angle Steel: 4 - 8#
- Applicable Copper Busbar: 3 - 10mm

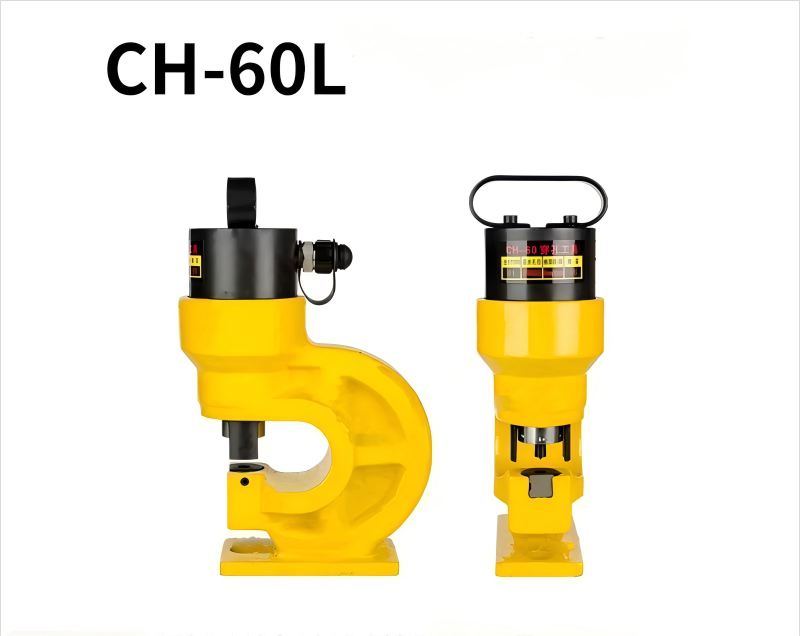

- Applicable Aluminum Busbar: 3 - 10mm CH - 60L Angle Steel Punching Machine
- Applicable Dies: Φ10.5, Φ13.8, Φ17.5, Φ20.5. For other sizes, please contact customer service for replacement.
- Model: CH - 60L
- Weight: 17.6kg
- Throat Depth: 95mm
- Output Force: 31T
- Applicable Channel Steel: 6 - 10# (wide face)
- Applicable Angle Steel: 3 - 8#
- Applicable Copper Busbar: 3 - 10mm
- Applicable Aluminum Busbar: 3 - 10mm

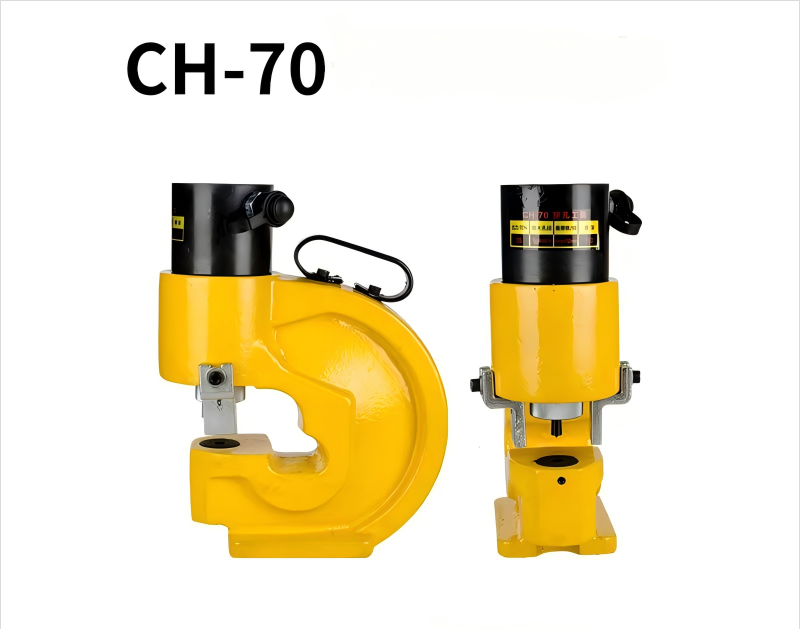

CH - 70 Ordinary Punching Machine
- Applicable Dies: Φ10.5, Φ13.8, Φ17.5, Φ20.5. For other sizes, please contact customer service for replacement.
- Model: CH - 70
- Weight: 35kg
- Throat Depth: 110mm
- Output Force: 35T
- Applicable Channel Steel: 6 - 12# (wide face)
- Applicable Angle Steel: 5 - 10#
- Applicable Copper Busbar: 3 - 12mm
- Applicable Aluminum Busbar: 3 - 12mm

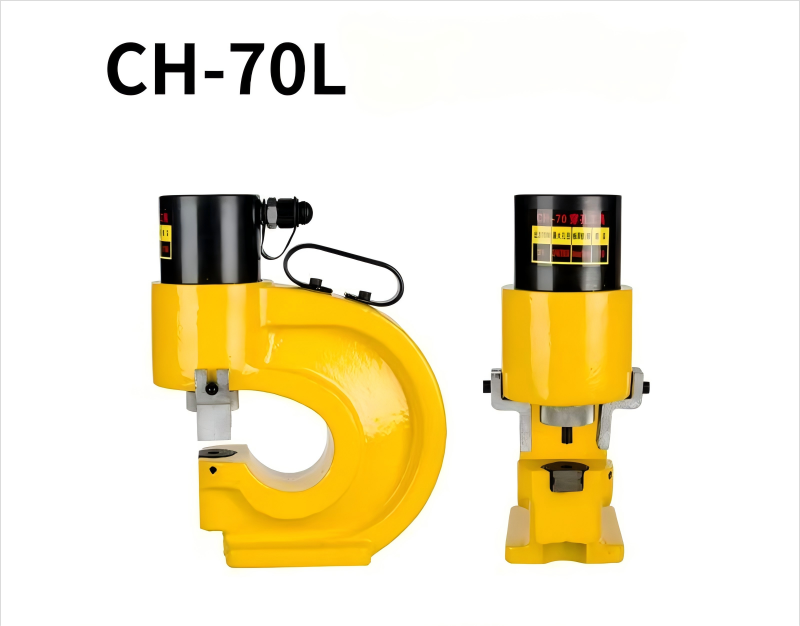

CH - 70L Angle Steel Punching Machine
- Applicable Dies: Φ10.5, Φ13.8, Φ17.5, Φ20.5. For other sizes, contact customer service for replacement.
- Model: CH - 70L
- Weight: 34kg
- Throat Depth: 110mm
- Output Force: 35T
- Applicable Channel Steel: 6 - 12# (wide face)
- Applicable Angle Steel: 5 - 10#
- Applicable Copper Busbar: 3 - 12mm
- Applicable Aluminum Busbar: 3 - 12mm

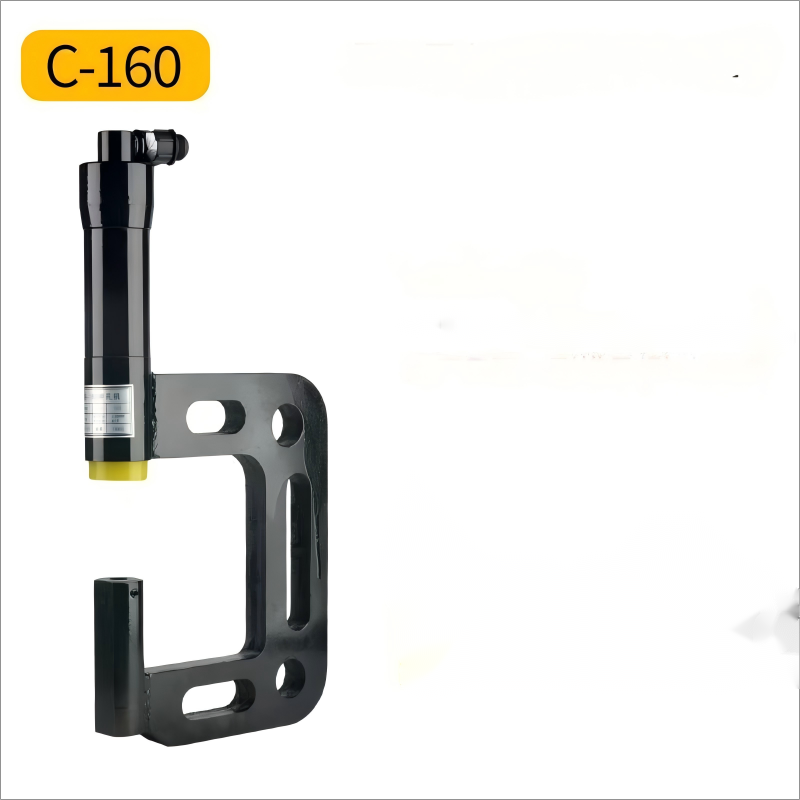

C - 160 Z - section Steel/C - section Steel Hole Opener
- Die Configuration:
Φ12mm (Dies can be optionally configured from 6 - 18mm). Only one set of dies is provided ex - factory (default is Φ12).
- Throat Depth: 160mm (Distance from the die center to the inner side)
- Ton - nage: 10T
- Maximum Hole Diameter: Φ18mm
- Net Weight: 15kg
- Hole - opening Capacity: For iron plates with a thickness of less than 3mm, and for stainless - steel plates with a thickness of less than 2mm
CAC - 110 Angle Steel Cutting Machine
- Model: CAC - 110
- Output Force: 30T
- Dimensions: 320150450mm
- Cutting Width: 110*110mm
- Cutting Thickness: 10mm
- Net Weight / Gross Weight: 37.8kg / 41.2kg
- Packaging: Wooden case
C - 160 Z - section Steel/C - section Steel Hole Opener
- Die Configuration:
Φ12mm (Dies can be optionally configured from 6 - 18mm). Only one set of dies is provided ex - factory (default is Φ12).
- Throat Depth: 160mm (Distance from the die center to the inner side)
- Ton - nage: 10T
- Maximum Hole Diameter: Φ18mm
- Net Weight: 15kg
- Hole - opening Capacity: For iron plates with a thickness of less than 3mm, and for stainless - steel plates with a thickness of less than 2mm

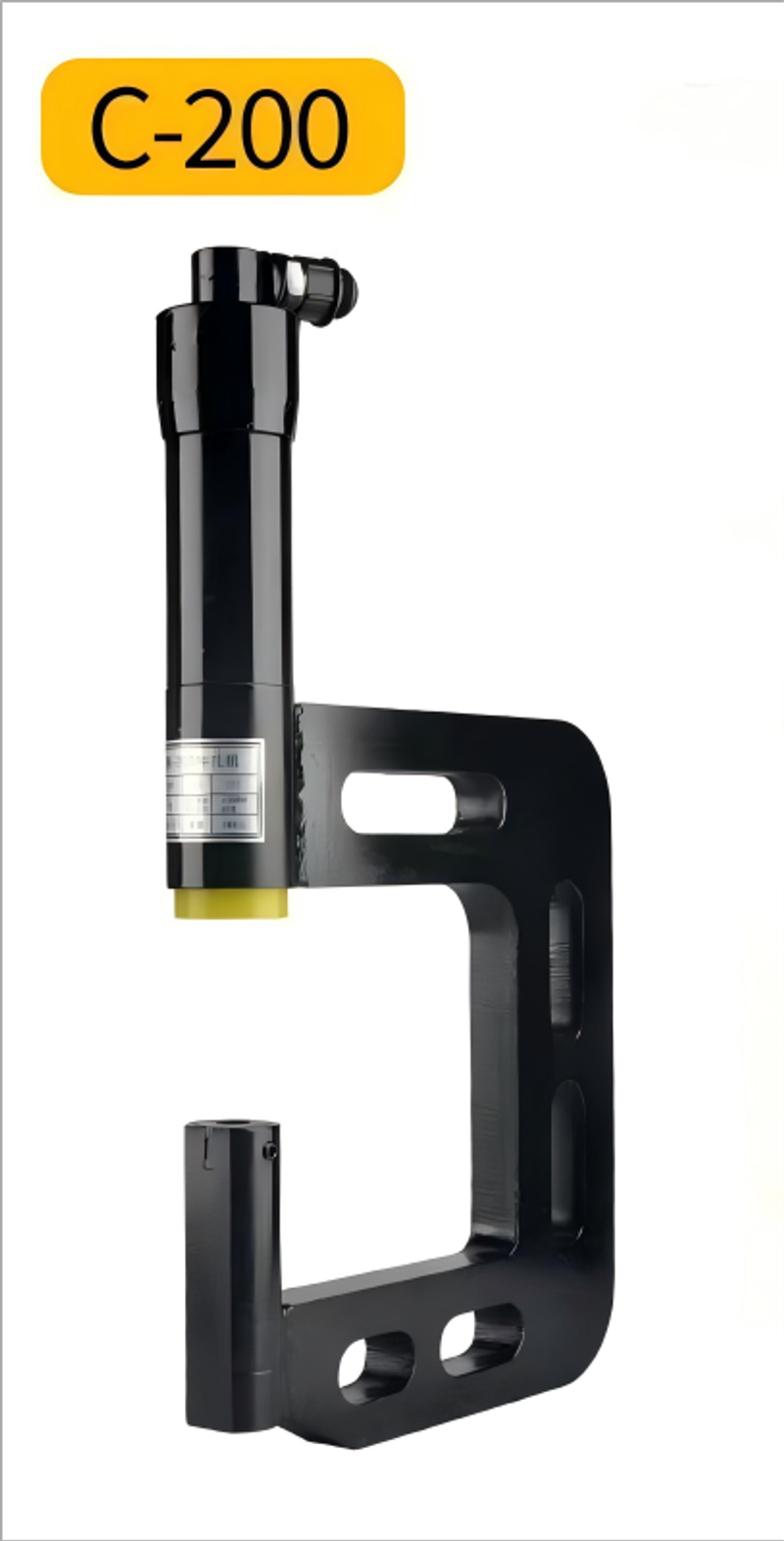

C - 200 Z - section Steel/C - section Steel Hole Opener
- Die Configuration:
Φ12mm (Dies can be optionally configured from 6 - 22mm). Only one set of dies is provided ex - factory (default is Φ12).
- Throat Depth: 200mm (Distance from the die center to the inner side)
- Ton - nage: 16T
- Maximum Hole Diameter: Φ22mm
- Weight: 16.8kg
- Hole - opening Capacity: For iron plates with a thickness of less than 3mm, and for stainless - steel plates with a thickness of less than 2mm
