Split-type hydraulic pliers
0
sales
Regular Price
$112.25
Regular Price
Sale Price
$56.13
FYQ-400

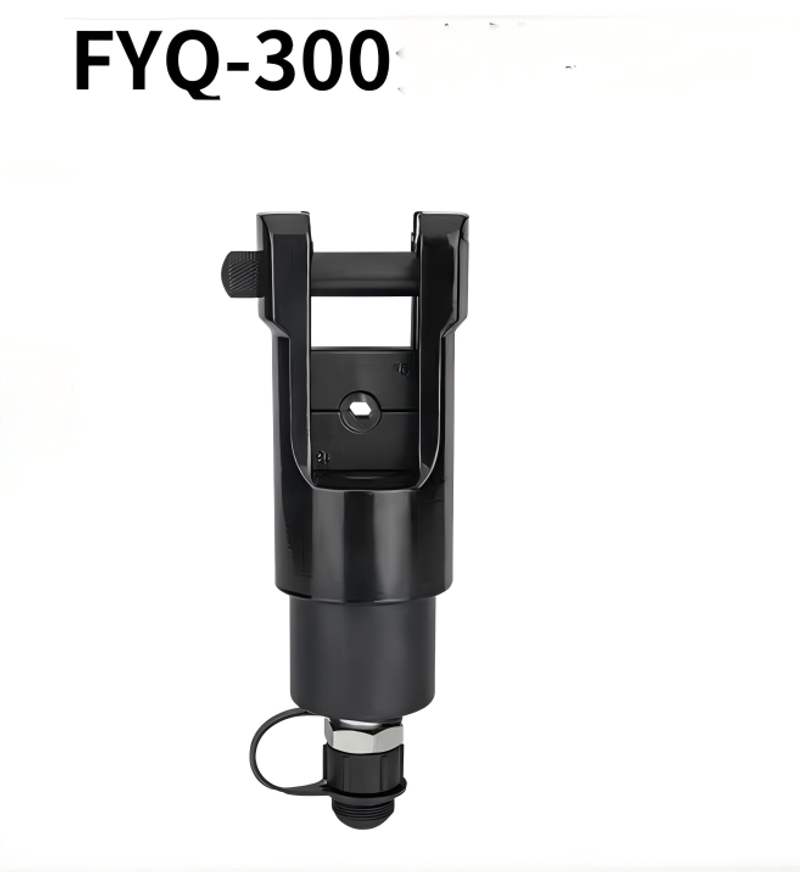

FYQ - 300 Split Hydraulic Crimping Tool
The "joint at the bottom" prompt indicates the installation direction of the joint when using this hydraulic crimping tool.
Hydraulic Crimping Tool Parameter Table
- Output Force: 16T
- Stroke: 20mm
- Crimping Type: Hexagonal Surround Crimping
- Die Configuration: 16/25/35/50/70/95/120/150/185/240/300mm²
- Net Weight / Gross Weight: 2.6kg / 4.2kg
Application Scope
With die configurations ranging from 16 to 300mm², it is applicable for crimping copper and aluminum cable joints of corresponding specifications. It can meet various conventional cable connection requirements and is commonly used in low - voltage distribution line construction, small - scale electrical equipment installation, and other scenarios.
Performance Parameters
- Output Force: The 16T output force can provide the necessary pressure for cable crimping, ensuring that the crimped part has a certain mechanical strength and reliable electrical connection.
- Stroke: The stroke is 20mm. The crimping action is completed within this distance, meeting the stroke requirements of conventional crimping operations.
Crimping Type
The hexagonal surround crimping type makes the cable joint evenly stressed during crimping, enhancing the stability and electrical conductivity of the connection part and improving the crimping quality.
Weight
With a net weight of 2.6kg and a gross weight of 4.2kg, it is relatively light and convenient for construction workers to carry and operate.
Hydraulic Crimper Parameters:
Output Force: 16T
Stroke: 20mm
Crimping Type: Hexagonal Surround Crimping
Die Configuration: 16/25/35/50/70/95/120/150/185/240/300mm²
Net Weight / Gross Weight: 2.6kg / 4.2kg

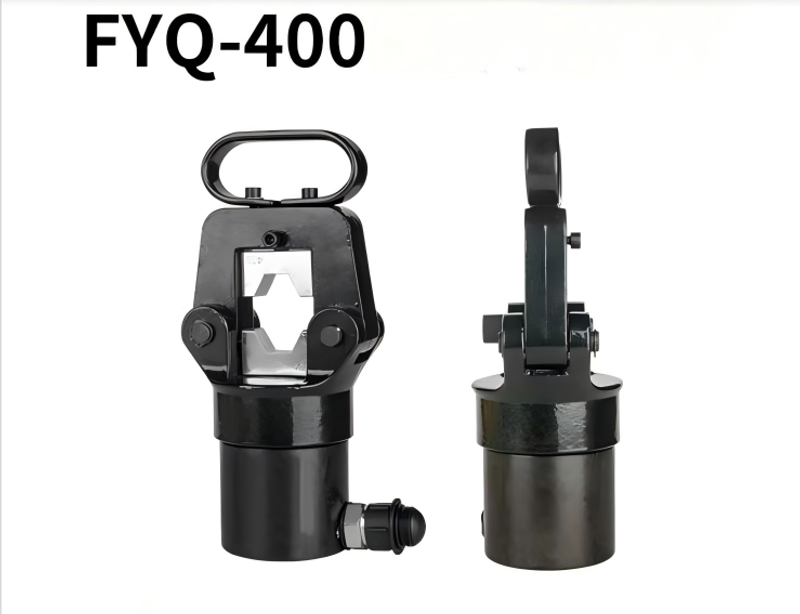

FYQ - 400 Split Hydraulic Crimping Tool
- Crimping Range: Copper 16 - 400mm², Aluminum 16 - 400mm²
- Model: FYQ - 400
- Output Force: 20T
- Stroke: 20mm
- Packaging: Hard Carton
- Crimping Type: Hexagonal Surround Crimping
- Net Weight / Gross Weight: 5.6kg / 11kg
FYQ - 400 split hydraulic crimping tool is a tool used for cable crimping in electrical construction. Here is the introduction:
Application Scope
The crimping range is from 16 - 400mm² for copper cables and 16 - 400mm² for aluminum cables. It is suitable for crimping operations of copper and aluminum cables within this specification range. It is commonly used in scenarios such as power line erection and cable maintenance to achieve reliable electrical connections.
Performance Parameters
- Output Force: The 20T output force can provide sufficient pressure to ensure that the cable crimping area has good mechanical strength and electrical connection performance, making the crimping firm and reliable.
- Stroke: The stroke is 20mm. The crimping action is completed within this distance, meeting the stroke requirements of conventional cable crimping operations.
Packaging and Transportation
It is packaged in a hard carton, which can protect the hydraulic crimping tool from collisions and other damages during transportation and storage to a certain extent, facilitating handling and storage.
Crimping Type
It adopts the hexagonal surround crimping type. This crimping method can make the cable connection part stressed evenly, enhance the stability and electrical conductivity of the connection, and improve the crimping quality.
Weight
The net weight is 5.6kg, and the gross weight is 11kg. Relatively speaking, the weight is moderate, making it convenient for construction workers to carry and operate.
FYQ - 500 Split Hydraulic Crimping Tool
- Crimping Range: Copper 16 - 500mm², Aluminum 16 - 500mm²
- Model: FYQ - 500
- Output Force: 20T
- Stroke: 20mm
- Packaging: Hard Carton
- Crimping Type: Hexagonal Surround Crimping
- Net Weight / Gross Weight: 5.6kg / 11kg
The FYQ - 500 split hydraulic crimping tool is a tool used for crimping copper and aluminum cable lugs. Here is the detailed introduction:
Application Scope
With a crimping range of 16 - 500mm² for copper and 16 - 500mm² for aluminum, it can perform crimping operations on copper and aluminum cables of corresponding specifications. It is applicable to scenarios such as power line installation and maintenance to achieve reliable electrical connections.
Performance Parameters
- Output Force: The 20T output force can provide sufficient pressure for crimping, ensuring a firm crimp and meeting the requirements for mechanical strength and electrical performance of cable connections.
- Stroke: The stroke is 20mm. The crimping action is completed within this distance, meeting the requirements of conventional crimping operations.
Packaging and Accessories
It is packaged in a hard carton, which is convenient for transportation and storage. Usually, it is equipped with 13 sets of dies (specifications: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500), which can be adapted to the crimping of cables of different specifications.
Crimping Type
The crimping type is hexagonal surround crimping, which can make the cable connection part evenly stressed, enhance the connection stability and electrical conductivity, and improve the crimping quality.
Weight
The net weight is 5.6kg, and the gross weight (including the total assembly of dies) is 11kg. It is convenient for construction workers to carry and oper

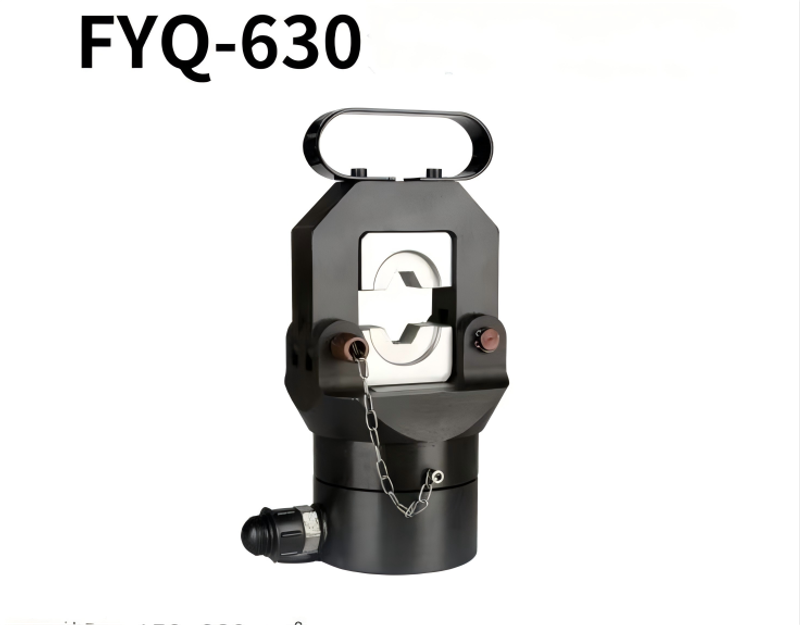

- Crimping Range: 150 - 630mm²
- Model: FYQ - 630
- Output Force: 35T
- Stroke: 25mm
- Packaging: Wooden Case
- Crimping Type: Hexagonal Surround Crimping
- Weight: 17.5kg

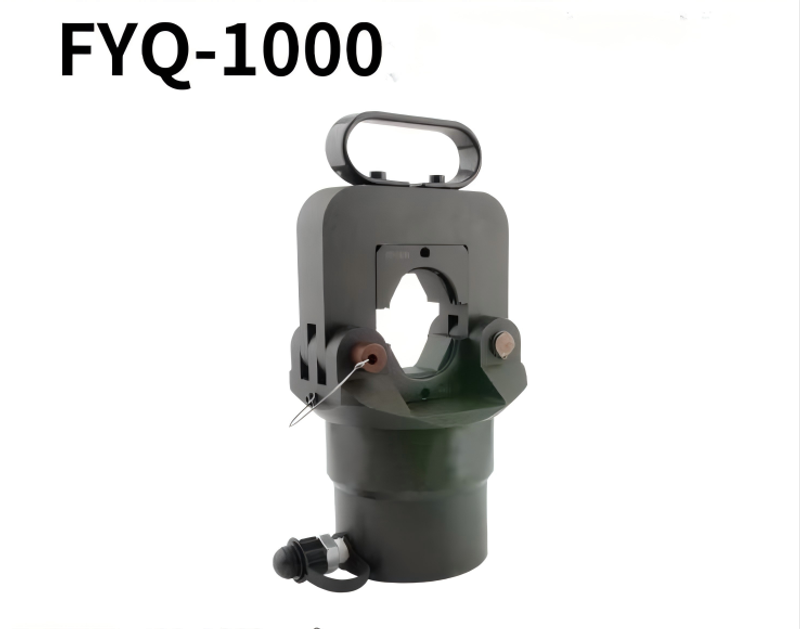

FYQ - 1000 Split Hydraulic Crimping Tool
Application Scope
The crimping range is 400 - 1000mm². It is applicable to the crimping operation of large - sized copper and aluminum cables. It is commonly used in the construction and maintenance of high - voltage transmission lines, large - scale substations and other power facilities to ensure reliable connection of large - cross - section cables.
Performance Parameters
- Output Force: With an output force of up to 55T, it can provide strong pressure, meeting the strict requirements for mechanical strength and electrical connection tightness during the crimping of large - sized cables.
- Stroke: The stroke is 24mm. The crimping action is completed within this distance to ensure the effectiveness of the crimping operation.
Packaging
It is packaged in a wooden case, which can effectively protect the tool from collisions and damages during transportation and storage, and is suitable for the packaging requirements of heavy - duty tools.
Crimping Type
The hexagonal surround crimping type makes the cable connection part stressed evenly, enhancing the stability and electrical conductivity of the connection and improving the crimping quality.
Weight
The weight is 23.7kg. Relatively heavy, the convenience of its handling and use needs to be considered during operation.
