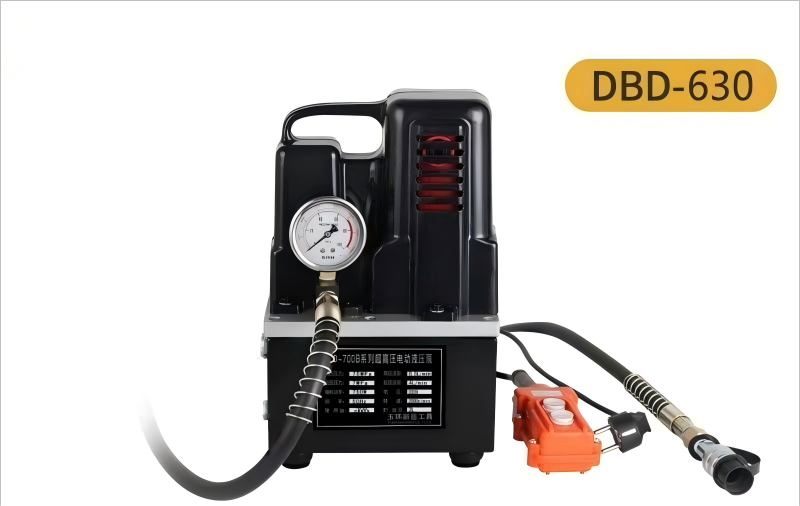

Electric hydraulic pump

Model: DBD - 630
High - pressure pressure: 70Mpa
Low - pressure pressure: 3Mpa
High - pressure flow rate: 0.7L/min
Low - pressure flow rate: 5L/min
Motor power: 1.2KW
Voltage: 3.5L/min
Frequency: 50Hz - 60Hz
Rotational speed: 3700r/min
Gross weight: 16.5KG (including packaging and oil pipe)
Oil storage capacity: 2L (factory - supplied)

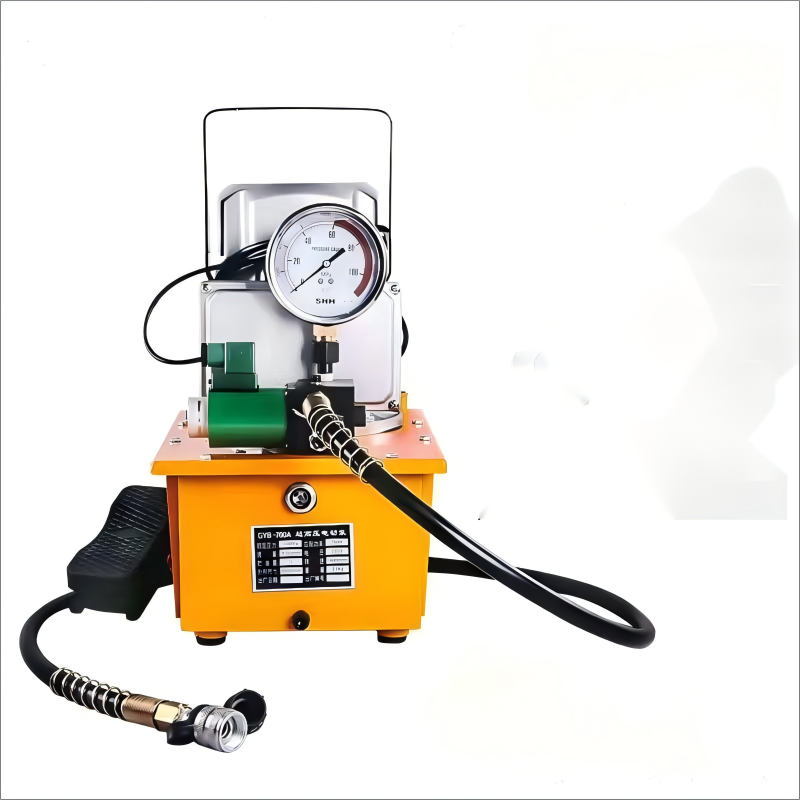

Type of oil: Anti - wear hydraulic oil below 32# or 7 - 15# hydraulic transmission oil                                                            Ultra - high Pressure Electric Pump
Solenoid Valve Foot - operated Switch

Product Model: GYB - 700A
High - pressure Pressure: 70Mpa
Low - pressure Pressure: 7Mpa
High - pressure Flow Rate: 0.9L/min
Low - pressure Flow Rate: 5L/min
Motor Power: 0.75Kw
Voltage: 220V/380V
Overall Dimensions: 47×37×29cm
Oil Storage Capacity: 7L

Friendly Reminder: The electric pump does not come with hydraulic oil when leaving the factory! Hydraulic anti - wear oil (15 - 32#) needs to be purchased separately.

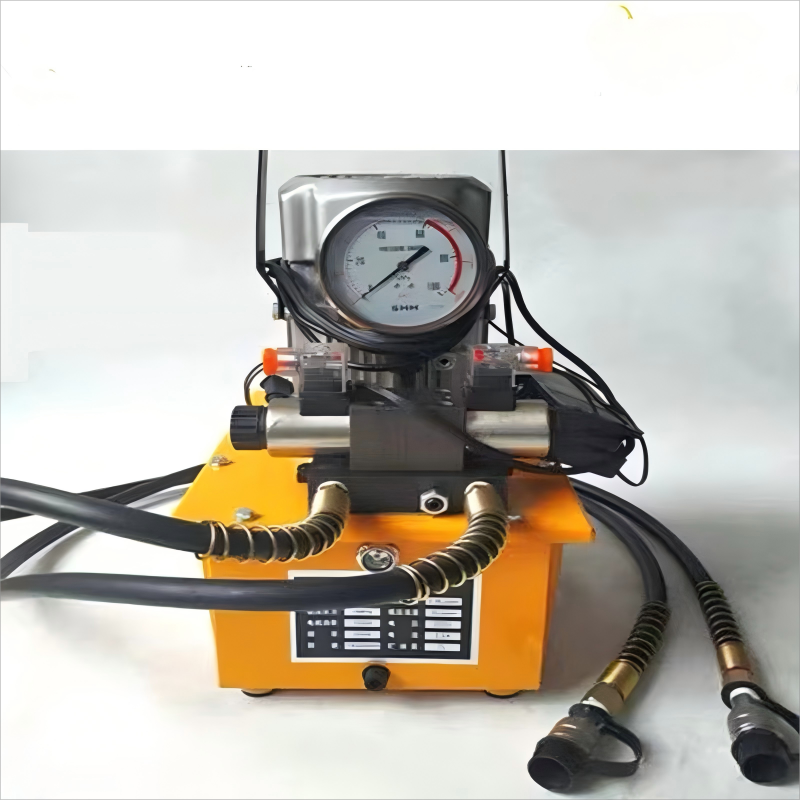

Solenoid Valve Double - loop Hydraulic Oil Pump

Warning: The electric pump does not come with hydraulic oil upon leaving the factory! 15 - 46# anti - wear hydraulic oil needs to be purchased separately.
Two oil pipes are equipped upon leaving the factory, each with a length of 2 meters. Note: Custom orders are required for lengthened oil pipes.

Product model:GYB -700-D2
Motor power: 0.75KW
Rotational speed: 1400R/MIN
Weight: 30KG
Working voltage: 220V
Oil storage capacity: 8L (the fuel tank can be enlarged)
Flow rate: 3.5L/MIN
Frequency: 50HZ - 60HZ
